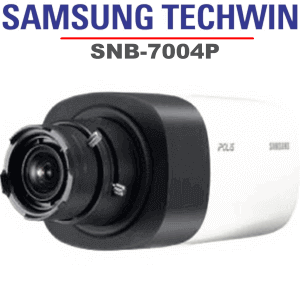

Samsung SNB-7004P Box camera Dubai


Samsung SNB-7004P Box Camera Dubai

The Samsung SNB-7004P Box camera Dubai features the most advanced WiseNetIII functions from Samsung with 3 megapixels 1080p of HD images. Its high functionalities contain 120dB Wide Dynamic Range which provides 30fps at 3 megapixels 1080p, low light performance down to 0.1 lux creating clear images under low light situations.


Samsung SNB-7004P Box Camera


The Samsung SNB-7004P Box camera Dubai 3.0 megapixel IP camera accepts simple compact design, the front part develops aluminum metal housing, and the second part is using white ABS plastic. For the moment, there is one mounting hole on each sides of IP camera to enable the installation of the camera in surveillance projects.

The Samsung SNB-7004P camera Dubai has rich interference, supports local video storage with Micro-SD slot, and Audio I/O for 2 way audio intercom, and BNC connector for analog video signal output, RJ-45 Ethernet interface, RS485 interface, alarm I/O for integration solution, and support PoE, power input connector to work with DC12V/AC24V power supply. Also, it has SD card status LED indicator and Power LED indicator, reset button and auto focus button.

The Samsung SNB-7004P Dubai Box Camera adopts 1/2.8″ PS Exmor 3.20M CMOS image sensor, maximum resolution reaches up to 2065×1565, supporting 3.0MP@30fps, 1080P@60fps HD resolution formats. Over testing, under 1080P resolution setting, the camera’s horizontal resolution is close to 1000TVL, vertical resolution is approximate 950TVL, general performance is normal.

Smart IPC is an video surveillance camera incorporates many smart features, which allow camera adjust its image processing on the basis of surveillance scene, also over network adjustment to achieve best monitoring results.  Moreover, there is a variety of built-in video analysis to attain functions such as perimeter exposure, objects missing, facial recognition or cross zone discovery.

Samsung SNB-7004P Box Camera Features:

  • Fitted with 1/2.8 PS Exmor 3.2M CMOS
  • Resolutions and Frame Rates of 2048×1536 @ 30fps (3M): H.264
  • 1920×1080 @ 60fps (2M, Full HD): MJPEG
  • Features Samsung’s Simple Focus – Motorized Back Focus, P-Iris
  • illumination – Colour: 0.1Lux @ 50IRE, 0.06Lux @ 30IRE (F1.2)
  • Mono: 0.01Lux @ 50IRE, 0.006Lux @ 30IRE (F1.2)
  • Dual Video Codec: H.264/MJPEG
  • Features Day & Night (ICR), Enhanced DIS, Defog
  • Features 3M Real-Time Wide Dynamic Range (WDR) – 120dB
  • Features SSDR, SSNRIV, Intelligent Video Analytics
  • Communication via RS-485: Samsung-T/E, Pelco-P/D & more
  • Fitted with a Built-in SD/SDHC/SDXC memory Slot
  • Bi-Directional Audio – Mic In & Line In
  • Fitted with a Built-in Microphone – G.711/G.726 Compression
  • Onvif compliant
  • Supports PoE IEEE802.3af Class 3
  • Powered by 12v DC 11.1W, 24v AC 13.1W or PoE 12.6W
  • Weight 430g
