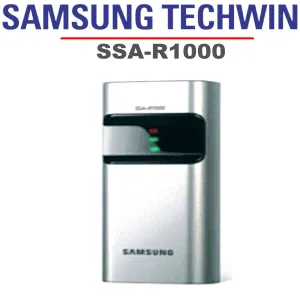

Samsung SSA-R1000 Proximity Card Format Dubai



Samsung SSA-R1000 Proximity Card Format Dubai

The Samsung SSA-R1000 proximity card format Dubai is 125 kHz, 26 bit Wiegand compatible reader. This reader by Samsung Dubai is designed with a thinner casing and comes sealed in solid epoxy providing consistent indoor and outdoor performance and is weatherproof (IP66).

Description

Samsung SSA-R1000 Proximity Card Format



The Samsung SSA-R1000 proximity card format Dubai is 125 kHz, 26 bit Wiegand compatible reader. This reader by Samsung Dubai is designed with a thinner casing and comes sealed in solid epoxy providing consistent indoor and outdoor performance and is weatherproof (IP66).

The Samsung SSA-R1000 Dubai is an elegant-looking proximity reader which has the maximum read range of 10cm, can be simply installed on a metallic doorframe or the wall. Essentially, both R1000 and R1100 use the same module with epoxy molding, which guarantees operation in any weather and atmosphere condition. The 2 different bezels of two models are compatible with each other, meaning one can be switched with the other according to the wall situation or the applicable condition. Green and red LED indicators and the Piezo buzzer confirm consistent and exact operations.

Samsung SSA-R1000 Proximity Card Format:

  • 125KHz Proximity / 13.56MHz(MIFARE) Contact-less Smart Card / EM Reader
  • PSK Modulation
  • 26/34bit Wiegand Output Forma
  • External LED Control
  • Indoor / Outdoor Operation
  • Solid Epoxy Potted
  • Weatherproof (IP66)
  • Reverse Polarity Protection
